DON5408 and INTEL
PRESENT
INTEL OVERDRIVE OPTIONS
For IBM Aptiva systems

This great free service from INTEL� makes it easy for you to find information about upgrading your system to the latest Intel OverDrive� processor technology!

Note: This area's features require a forms capable Web browser.
   If your browser does not support forms:
      1. Get a decent browser
      2. Email me with your model and I will send you the info.

Please select the computer model from this list of 68 IBM Aptiva systems,
then click the "Continue..." button

If you don't see your computer model on this list, INTEL may still have OverDrive processor upgrade information for your model. Click here. .

PRICING: PENTIUM� OVERDRIVE� PROCESSORS

Pentium OverDrive processor w/MMX�BPODPMT66X166 $219 $199
Pentium Overdrive processor w/MMX�BPODPMT66X200 $349 $199

BPODPMT66X166 Upgrades 100 and 133MHz to 166MHz.
BPODPMT66X200 Upgrades 75MHz to 150MHz; 90, 120, 150MHz to 180MHz; 100, 133, and 166MHz to 200MHz.

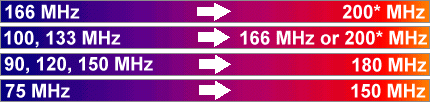

Upgrade Path

Original Pentium� Processor


Processor Speed before Upgrade

Pentium OverDrive� Processor
with MMX� Technology

Processor Speed after Upgrade

[Pentium OverDrive Processor w/ MMX Technology Upgrade Path]


To upgrade 75MHz Pentium processor-based systems to 150MHz use the 200MHz Pentium OverDrive processor with MMX technology.

* The 200-MHz Pentium OverDrive processor with MMX technology is designed for upgradable Socket 7 systems. Installation in upgradable Socket 5 systems should not be attempted unless the system meets the minimum Socket 7 specification.

Key Product Features

Pentium� OverDrive� Processors with MMX� Technology

Technical Talk Easy Speak
Pre-configured bus-to-core speed ratios Typically no motherboard jumpers to change when installing
Integrated fan heatsink Cools processor
On-package voltage regulation - adapts 3.3v system voltage to 2.8v processor voltage Allows newer processor technology to work in your current system
Redesigned clock buffer for older socket 5 systems Protects the processor from potential damage in systems with 5v voltage clocks
Advanced Pentium processor technology
  • 0.35 micron
  • 32K on-chip cache
 Higher performance on all software applications
MMX technology enhancements
  • 57 new instructions
  • SIMD (Single Instruction, Multiple Data)
 Changes to Intel architecture improve performance for multimedia and communication applications designed for MMX technology

A note on compatibility: A standard Pentium processor with MMX technology used as an upgrade may cause processor and/or system damage over time due to the voltage differences of the system and processor.The Pentium OverDrive with MMX technology is the only processor recommended for upgrading your processor to MMX technology.


What is MMX?
